Ambient condition
1. Ambient temperature: -5 ~+40 , daily average temperature +35 ;
2. Altitude: 2000m, indoor type;
3. Ambient relative humidity at highest temperature +40 not exceed 50%;
4. Allowed max relative humidity at low temperature, example for +20 is 90%,
it will occur moderate moist due to temperature change;
5. Vertical installation, gradient: 5%;
6. Occasions without flammable and explosive matter, without corrosive chemical and frequent severe vibration.

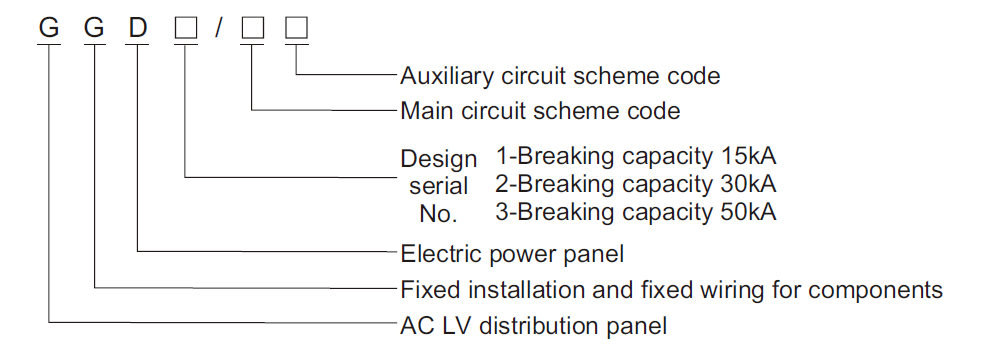

Model
Product feature
1. GGD AC LV distribution panel adopts commonly type, the frame are welded or assembled by 8MF cold bend steel, the
components and special fitting of frame are supplied by our company. To keep perfect precision and quality.
2. Commonly panel components are designed reference to module principle, 20 modular, high commonly fact or, shorten production
cycle and improve production efficiency.
3. We have taken account of heat radiation during operating when got ready to design . There are man y heat ra diation s lotted
eye from top to bottom on the body. Heat quantity will displace to direction of upper slotted eye, then the cold wind will be
compensated from bottom slotted eye, when the components is heating and increase heat quantity, then form to a natural air
channel.
4. GGD panel adopts modern industrial style design, adopts golden section method to design panel outline and section dimension
of every parts.
5. The panel door are connected by transfer axle type moving link chain and frame, convenient to install and disassemble.
6. There is a rubber plastic bar in the place of edge and a compress travel between door and frame in closing.
7. Panel finishing coat of instrument door chooses multi strand soft copper line to connect with frame.
8. The installation components and frame are connected by knurled washer to complete earthing protection system.
9. The body finishing coat is choice polyester orange type bake lacquer, also can choose spouting moulding technology, strong
adhesive force.
11. The body protection degree is IP 30, allowed scope is from IP 20 to IP 40 according to ambient condition.

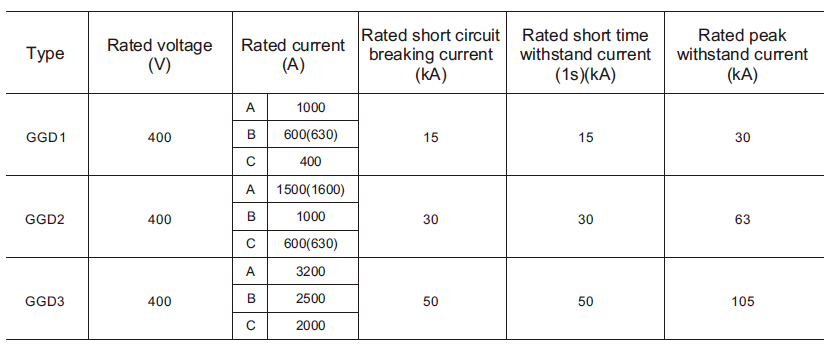

Technical specification

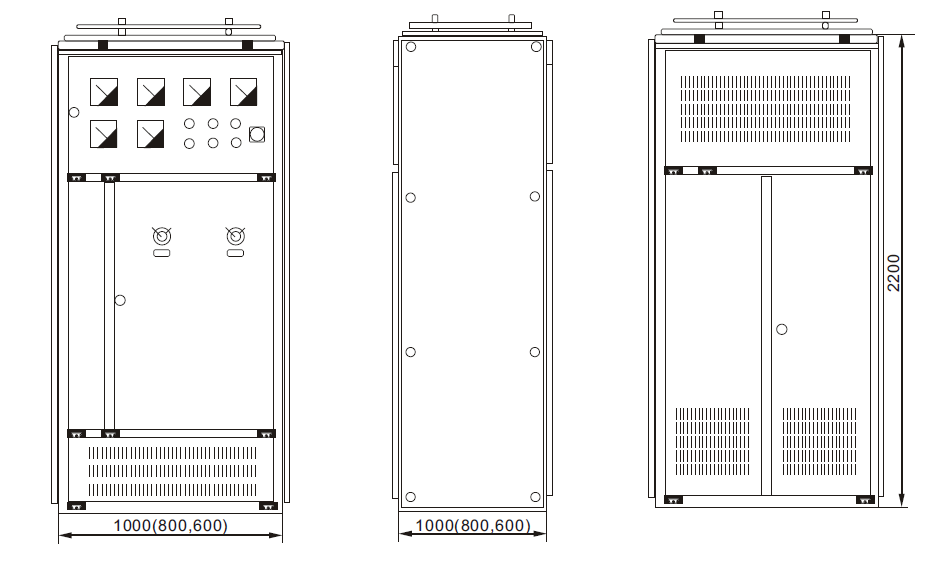

Outline drawing
