General
SCBH15 series amorphous alloy Dry-Type transformer has advanced performance in following points: low no-load loss, fire resistance and self-extinguishing, moisture resistance and maintenance-free. This series product can be applied in any place where the common dry-type transformer worked, such as airport, bus station, urban subway, high-rise construction and power station. And SCBH15 transformer can especially appropriate to be used in the energy-shortage and combustible, explosive places.
Product advantages:
1.Super low consumption, energy economized, high power rate

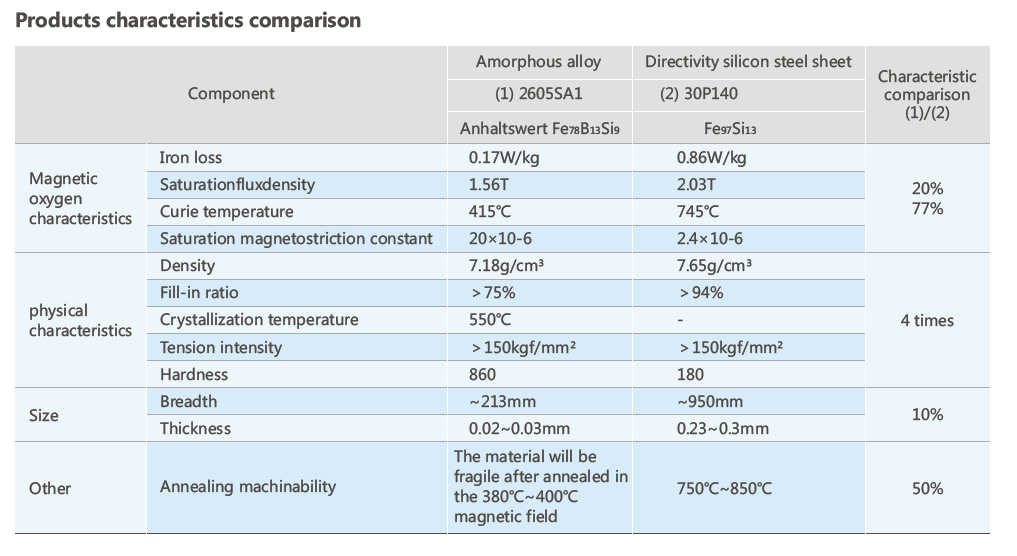

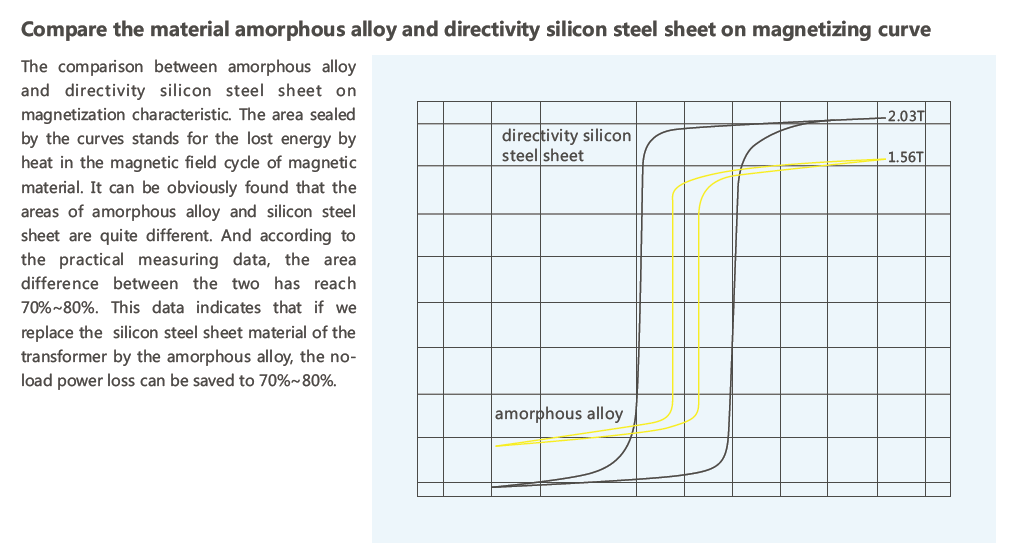

2.Amorphous Alloyed material can tremendously reduce the power consumption and loss. The motor with this material will discharge much less SO,CO gases, which to a large extent decelerates the pollution and greenhouse effect
3.Operating temperature stays low, insulation aging slow, transformer service life’s long
4.Wonderful overload capability, and excellent mechanical strength
5.Good Harmonic-bearing capability. When the amorphous core cross through the high-frequency flux, the motor can still work in a low core loss and low excitation current way. So that the core saturation problem can be avoided
6.Benefit on investment returns quickly

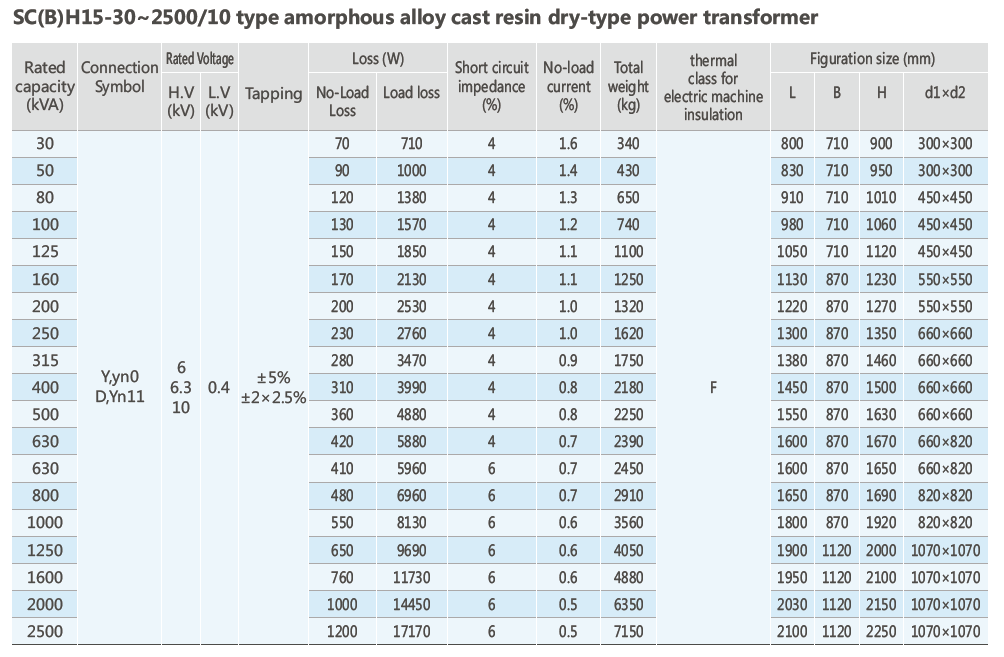

Operation conditions:
Phase number: three-phase
Voltage level: Primary side voltage:10kV Secondary side voltage: 0.4kV
Frequency: 50Hz
Connection symbol : Dyn11、Yyn0 or according to the specific requirements
Cooling method: self cooling or forced air cooling
Operating environment: altitude≤ 1000m, max relative humidity 100%, ambient temperature should below 40℃
Insulation endurance class: F
Winding temperature rise: 100K
Implementation of the standards:
GB 1094.11-2007 GB 1094-1996 GB/T22072-2008 GT/T17211-1998 JB/T 10088-2004 GB 4208-1993 IEC726
